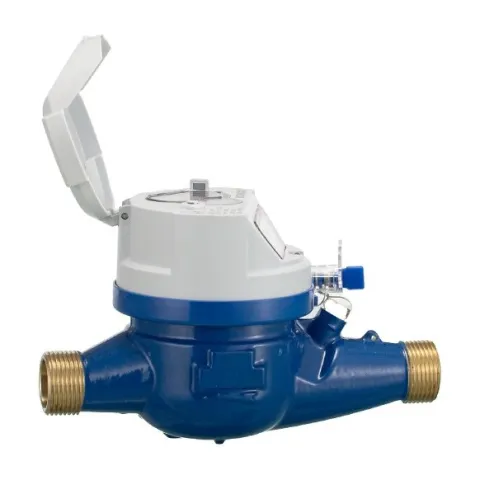

The side profile of a Metrys R160 multi-jet pulse-ready water meter, with its white register housing, raised lid and a wire seal.
Multi-jet water meter, drawn illustration

100%
A Metrys R160 multi-jet water meter with a white pulse-ready register and open lid on a blue body.
The side profile of a Metrys R160 multi-jet pulse-ready water meter, with its white register housing, raised lid and a wire seal.
Multi-jet water meter, drawn illustration

Double-click or use + and − to zoom; drag to move around.

Water meters MJ-R160-P

R160 Multi Jet Water Meter, Pulse-Ready

The R160 multi-jet in brass, supplied ready for remote reading.

Nominal size
DN15
Q3 permanent flow
2.5 m³/h
R value (Q3/Q1)
160
Accuracy class
2

Select nominal size (DN)

Specifications update with the selected size.

DN15 ½″ DN20 ¾″ DN25 1″ DN32 1¼″ DN40 1½″

Documents

Download datasheet (Opens in a new tab)

Overview

Why buyers choose it

  • The second phase stays cheap

    Reading hardware clips on later, so automation does not mean pulling meters out of riser cupboards.

  • Inductive, not a reed switch

    No contact to wear out, and no counts to be added by a magnet held against the body.

  • Brass body

    Specified where a plastic body will not survive the installation or the inspection.

  • R160 at class 2

    The same declared metrology as the standard dry dial meter, so the two are interchangeable on a schedule.

In detail

This is the brass-bodied R160 multi-jet supplied with its inductive sensor already fitted. The metering is unchanged — DN15 to DN40, class 2 across an R160 turndown, 16 bar — and what is added is the ability to read it without sending anybody.

Buying meters pulse-ready is a decision about the second phase of a scheme rather than the first. Meters go in when the block is built; the reading system arrives when the budget does, often years later. A meter with no provision has to be removed to gain it, and in a riser cupboard or a buried box that cost is what quietly kills the automation phase.

The pickup is inductive, so unlike a reed switch it cannot be triggered by a magnet held against the body, and there is no contact to wear out. A non-return valve is available, and the meter is provided with wire and lead seal.

Pulse outputs of 1 or 10 litres per pulse can be specified, and an IP68 version is available for meter chambers that flood.

Technical specifications

Selected size: DN15

Values shown apply to the selected size. A dash means the figure is not stated.

Metrological

Nominal size DN15
R value (Q3/Q1) 160
Accuracy class 2
Register type Multi jet, dry dial, vacuum sealed, pulse-ready
Maximum permissible error, Q1 to Q2 ±5%
Maximum permissible error, Q2 to Q4 ±2% for water having a temperature ≤30℃; ±3% for water having a temperature >30℃
Indicating range 99,999
Resolution of indicating device 0.00005

Hydraulic

Q3 permanent flow 2.5 m³/h
Q1 minimum flow 0.015625 m³/h
Maximum working pressure 16 bar
Pressure loss class ΔP63
Q2 transitional flow 0.025 m³/h
Q4 overload flow 3.125 m³/h
Flow profile sensitivity class U0 D0

Materials

Body material Brass

Environmental

Temperature class T30 and T50

Approvals

Standards ISO 4064, OIML R49

Dimensions and installation

Length 165 mm Height 100 mm
Schematic, not to scale
Connection thread G3/4" B
Length 165 mm
Weight 0.82 kg
Orientation limitation Horizontal
Height 100 mm
Width 81 mm

Parts

Parts of a multi-jet meter

How a meter of this type is built, and what this model is made of.

Parts of a multi-jet meter, drawn illustration Exploded illustration of a multi-jet water meter's parts, numbered top to bottom: 1 lid, 2 register, 3 register ring/seal, 4 measuring chamber insert with its jets, 5 impeller, 6 strainer, 7 body, 8 tailpieces/connections. 1 2 3 4 5 6 7 8
Illustrative: how a meter of this type is built. This model's own materials and figures are in the table and its specifications.

  1. Lid

    Caps the register and keeps water and debris off the dial.

  2. Register

    Totalises and displays the water passed.

    Register type Multi jet, dry dial, vacuum sealed, pulse-ready

  3. Register ring / seal

    Seals the register housing against water ingress.

  4. Measuring chamber insert (with jets)

    Directs several jets onto the impeller from multiple sides for balanced, even wear.

  5. Impeller

    Turns with the combined jets and drives the register.

  6. Strainer

    Screens out grit and debris before the measuring element.

  7. Body

    Houses the measuring element and carries the flow.

    Body material Brass

  8. Tailpieces / connections

    Threaded couplings that join the meter to the pipework.

    Connection thread G3/4" B
