Smart water meters WR-1

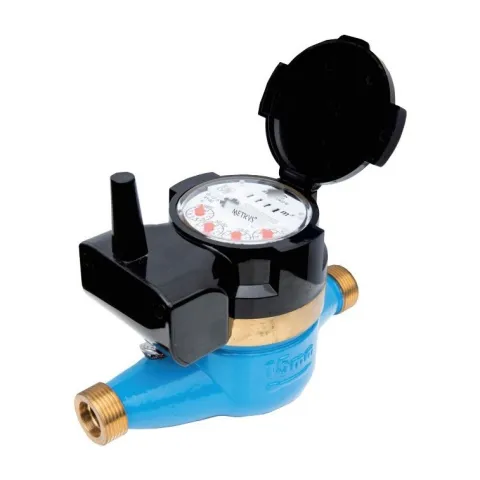

Wireless Reading Water Meter
A mechanical meter with a wireless register, read to ten litres.
- Communication
- LoRaWAN IN865
- R value (Q3/Q1)
- 100
- Battery life
- 10 years
- IP rating
- IP68
Documents
Overview
Why buyers choose it
-
Electronics change, meter stays
The radio and battery are a separate module, so a failure is a module swap rather than a meter replacement.
-
It reports its own health
Sensor faults and battery state are sent unprompted, so dead meters surface before the disputed bill does.
-
Built for penetration
The radio is specified for lids, risers and slabs, which is what actually defeats a domestic scheme.
-
Ten-year battery
One battery life covers a normal meter replacement cycle, so the two programmes do not fight each other.
In detail
This is the straightforward route to automatic reading: a proven mechanical measuring element with an electronic register on top that sends its reading rather than waiting to be looked at. The reading resolves to ten litres, which is enough to bill from and enough to spot a change between nights.
The design keeps the electronics separate from the measuring element. That sounds like a detail and is actually the maintenance story — a failed radio or a flat battery is a module change rather than a meter change, and the meter that is measuring correctly stays in the wall.
The register runs for at least ten years on its own battery and reports its own health: sensor faults and battery state are sent without being asked for, so a scheme finds out about a dead meter from the system rather than from a customer's estimated bill.
It is sealed to IP68, reports at R100, and the radio is specified for penetration rather than range alone — the hard part of a domestic scheme is not distance but the meter box lid, the riser cupboard and the reinforced slab above it.
Technical specifications
Metrological
| R value (Q3/Q1) | 100 |
|---|---|
| Register type | Mechanical element with electronic wireless register |
Electrical
| Battery life | 10 years |
|---|---|
| Valve control | No |
| Tamper detection | Yes |
Communication
| Communication | LoRaWAN IN865 |
|---|---|
| Data parameters transmitted | Totalised volume, battery status, sensor fault flags |
Environmental
| IP rating | IP68 |
|---|
Approvals
| Standards | ISO 4064 |
|---|
Download centre
Everything you need to specify.
Documents for the Wireless Reading Water Meter.
-
Download PDF (Opens in a new tab)
Technical datasheet
Specifications and dimensions.
